14. To Draw The I-V Characteristic Curve of A P-N Junction in Forward Bias and Reverse Bias

By / 2 Practical II / 2 Comments

To draw the I-V characteristic curve of a P-N junction in forward bias and reverse bias

How to draw the I-V characteristic curve of a P-N junction in forward bias and reverse bias.

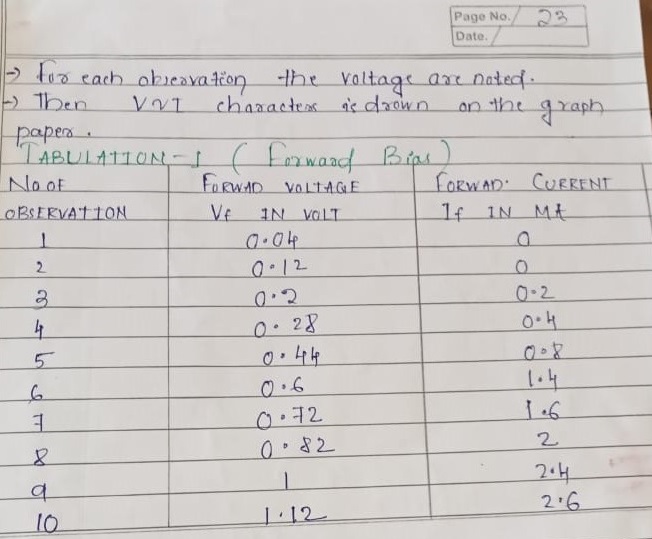

Write down the experiment.

CONCLUSION

The current(I)-voltage(V) characteristic curves of a P-N junction in forward bias and reverse bias are drawn.

PRACTICAL EXAM – 2024

PROBLEM

A full wave p-n junction diode rectifier uses a load resistance of 1200 ohm. The internal resistance of each diode is 9 ohm. Find its efficiency.

SOLUTION

\eta = \frac{0.812R_{L}}{r_{f}+R_{L}}
